CE 135 HYDRAULICS LAB: Hydraulic Jump & End Drop Off

Slide 1 of 17

 First slide Previous slide Next slide Last slide Index page

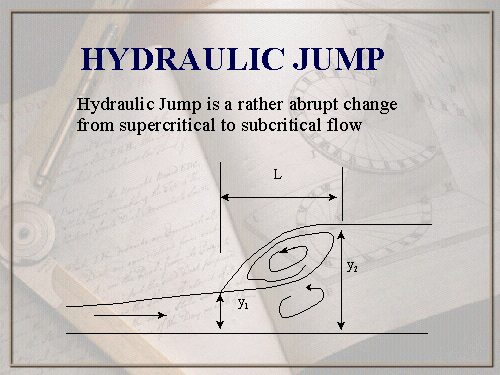

SKETCH OF HYDRAULIC JUMP

Slide 2 of 17

 First slide Previous slide Next slide Last slide Index page

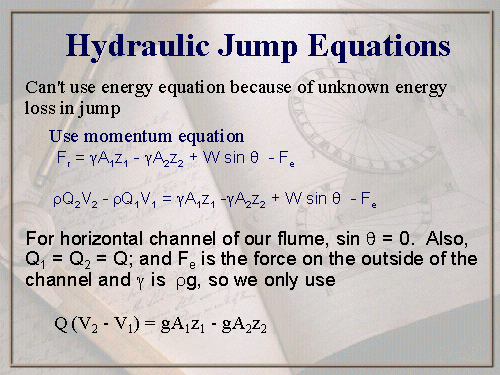

Basic Equations For A Jump

Slide 3 of 17

 First slide Previous slide Next slide Last slide Index page

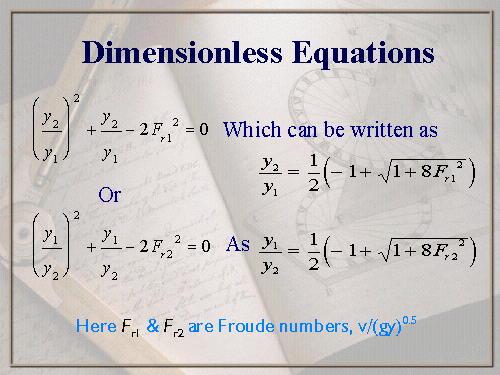

I Like To Use Dimensionless Equations

Slide 4 of 17

 First slide Previous slide Next slide Last slide Index page

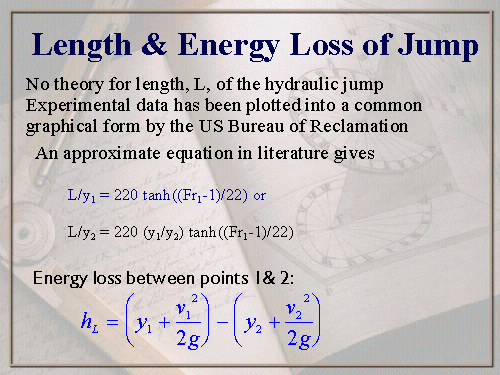

Equations for Length of Jump & Energy Loss

Slide 5 of 17

 First slide Previous slide Next slide Last slide Index page

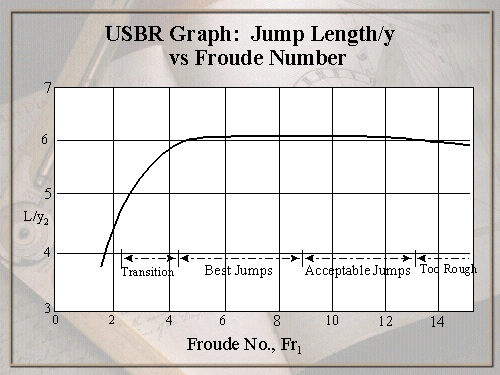

The USBR Graph 0f L/y vs Froude Number

Slide 6 of 17

 First slide Previous slide Next slide Last slide Index page

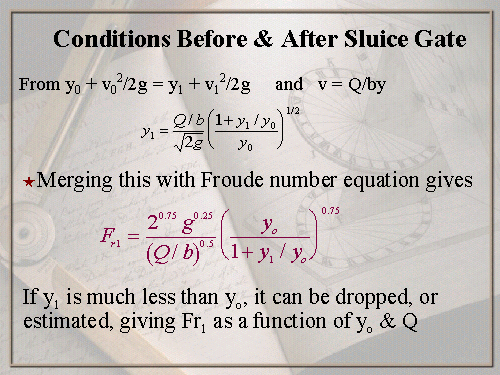

Using the Sluice Gate to Set Froude Number for Jump

Slide 7 of 17

 First slide Previous slide Next slide Last slide Index page

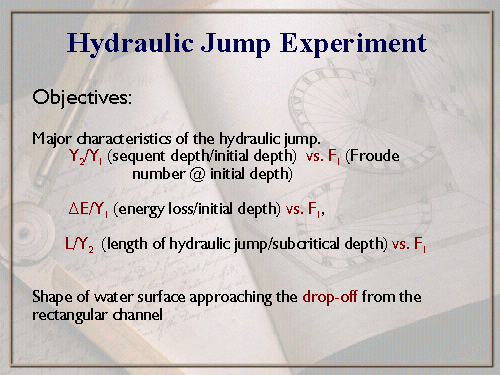

Objectives of Jump & Drop-Off

Slide 8 of 17

 First slide Previous slide Next slide Last slide Index page

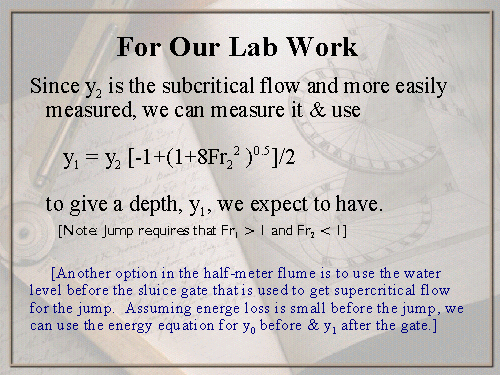

Subcritical Depth Is Easier to Measure

Slide 9 of 17

 First slide Previous slide Next slide Last slide Index page

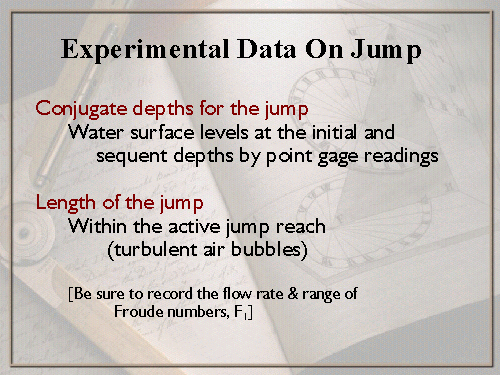

Conjugate Depths & Length of Jump

Slide 10 of 17

 First slide Previous slide Next slide Last slide Index page

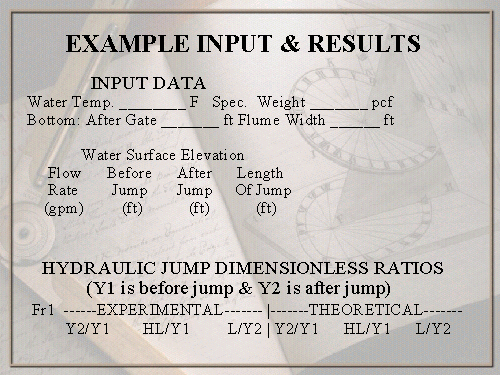

Some Table Headings for Input & Results

Slide 11 of 17

 First slide Previous slide Next slide Last slide Index page

Key Results for Graphs

Slide 12 of 17

 First slide Previous slide Next slide Last slide Index page

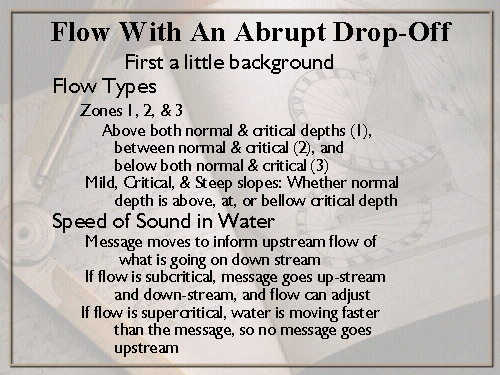

BACKGROUND ON DROP-OFF

Slide 13 of 17

 First slide Previous slide Next slide Last slide Index page

Description of Drop-Off

Slide 14 of 17

 First slide Previous slide Next slide Last slide Index page

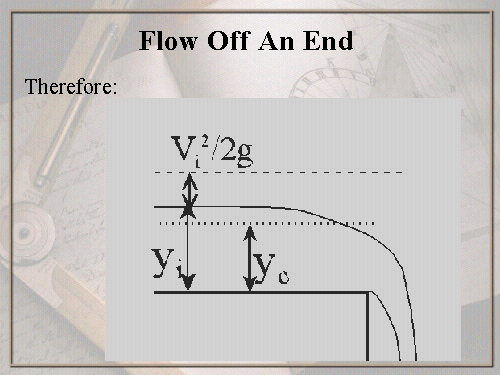

Sketch of Drop-Off

Slide 15 of 17

 First slide Previous slide Next slide Last slide Index page

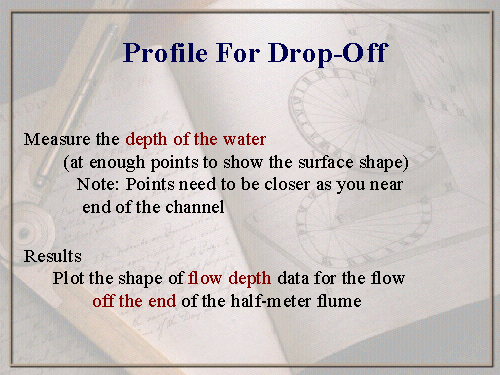

Procedures For Input & Results

Slide 16 of 17

 First slide Previous slide Next slide Last slide Index page

END OF PRESENTATION

Slide 17 of 17
